What does “oil length” mean?
Oil length is the percentage of fatty acids or drying oils in the total alkyd resin composition.
Increasing oil length introduces more unsaturated fatty acid chains, which:
- Improve flexibility and flow
- Slow oxidative drying
- Reduce hardness and chemical resistance
Reducing oil length shifts the balance toward the polyester backbone, increasing hardness and crosslink density.
Industry convention groups alkyds into three families:
- Long oil: > 60% oil
- Medium oil: ~40–60% oil
- Short oil: < 40% oil
Long oil alkyds
Long oil alkyds contain the highest proportion of drying oil.
Key characteristics
- High flexibility and toughness
- Slower air-drying via oxidation
- Excellent flow, leveling, and gloss
- Soluble in mineral spirits (aliphatic solvents)
Typical technical ranges (approx.):
- Oil length: > 60%
- Viscosity (neat): ~1,000–8,000 cP
- Acid value: ~5–15 mg KOH/g
- Dust-free time: ~4–8 hours
Where they work best
- Decorative enamels
- Wood varnishes
- Exterior architectural coatings
- Maintenance paints applied by brush or roller
Medium oil alkyds
Medium oil alkyds balance flexibility and hardness, making them the most general-purpose family.
Key characteristics
- Balanced hardness and flexibility
- Faster drying than long oil, slower than short oil
- Good gloss retention
- Moderate solvent tolerance
Typical technical ranges:
- Oil length: ~40–60%
- Viscosity (neat): ~2,000–12,000 cP
- Acid value: ~5–12 mg KOH/g
- Dust-free time: ~2–6 hours
Where they work best
- Architectural enamels
- General-purpose industrial finishes
- Wood coatings
- Interior and exterior metal coatings
Short oil alkyds
Short oil alkyds contain the lowest oil content and the highest proportion of polyester backbone.
Key characteristics
- Hard, rigid films
- Very fast curing when baked
- Poor air-dry without heat
- Require stronger (aromatic) solvents
Typical technical ranges:
- Oil length: < 40%
- Viscosity (neat): ~5,000–20,000 cP
- Acid value: ~3–10 mg KOH/g
- Air-dry: insufficient → heat curing required
Where they work best
- Baking enamels
- Industrial primers
- Corrosion-resistant systems
- Alkyd–melamine bake systems

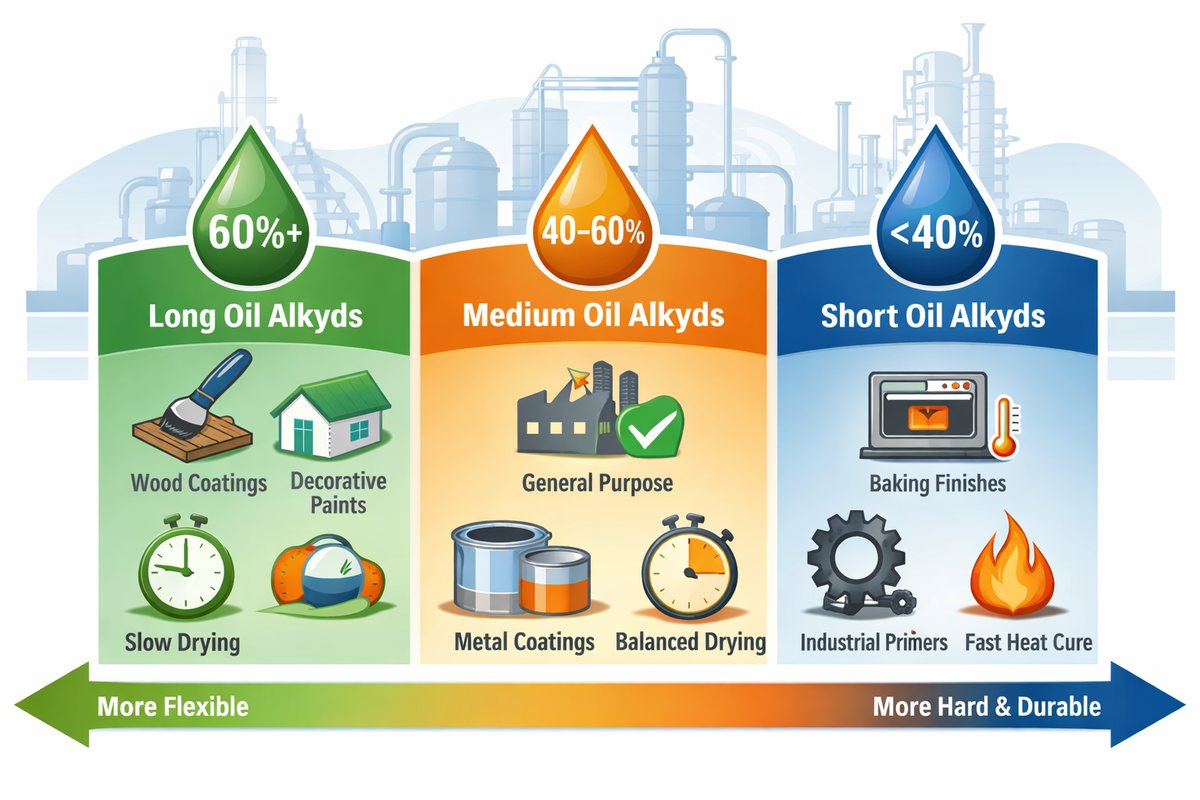

Side-by-side practical comparison
| Property | Long Oil | Medium Oil | Short Oil |
|---|---|---|---|
| Oil content | High (>60%) | Medium (40–60%) | Low (<40%) |
| Drying | Slow, air-dry | Moderate, air-dry | Heat-cure |
| Flexibility | High | Medium | Low |
| Hardness | Low–Medium | Medium | High |
| Solvent type | Aliphatic | Mixed | Aromatic |
| Typical use | Decorative, wood | General purpose | Industrial baking |
Choosing the right oil length
Selecting oil length is about matching resin architecture to application reality. Ask four practical questions:
- Do I need air-dry or heat-cure?
- Is flexibility or hardness more critical?
- What application method is used (brush, spray, line)?
- What solvents and VOC limits apply in my market?
Most formulation issues trace back to oil length mismatch, not additive choice or pigment selection.
Final takeaway
Oil length determines how an alkyd behaves before, during, and after application. Long, medium, and short oil alkyds are purpose-built tools—choose the one that fits your curing method, film properties, and process speed.
View Alkyd Resin Families Talk to Technical Sales
FAQ: Choosing Alkyd Oil Length
How do I know if I need long, medium, or short oil?
Match oil length to curing and film needs: long oil for air-dry flexibility and gloss, medium for balanced air-dry systems, short oil for bake-cure hardness and chemical resistance.
Which solvents pair best with each oil length?
Long oils dissolve in aliphatic solvents; medium oils tolerate mixed (aliphatic/aromatic) blends; short oils generally require aromatic solvents for proper solubility and flow.
Can I swap a medium oil for a long oil to speed drying?
Yes, medium oils typically dry faster than long oils, but verify viscosity, acid value, and pigment wetting to avoid reformulation issues.
Why won’t my short oil alkyd air-dry?
Short oils are formulated for oxidative bake or catalyzed cure; without heat, crosslinking is incomplete, leading to brittle or under-cured films.
Do modifiers (like urethane) change oil-length selection?
Modifiers can raise hardness or resistance at a given oil length, but they don’t replace the core role of oil length. Choose oil length first, then use modifiers to fine-tune performance.
